Производство: Италия
Reversible unit, air source for outdoor installation
Возможные версии

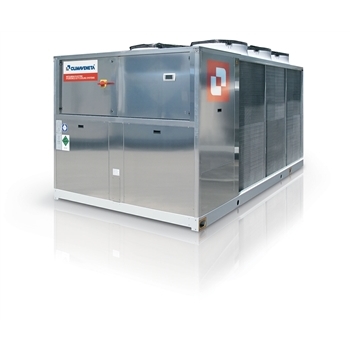

Outdoor reversible unit for the production of chilled/hot water with hermetic rotary Scroll compressors, low-GWP and ozone-friendly refrigerant R454B, axial-flow fans, copper tubes aluminum fins air coils, shell and tubes heat exchanger, and thermostatic or electronic expansion valve, according to the model. External panels in pre-clad sheet steel and base in galvanised steel with paint finish. The range is composed by units equipped with four compressors in tandem configuration on two independent refrigerant circuits.
The new generation refrigerant R454B is the most eco-sustainable alternative to traditional refrigerant R410A, offering a 76% reduction in terms of GWP (Global Warming Potential GWP of R454B = 466, GWP of R410A = 1924 as per IPCC rev. 5th) and zero impact on the ozone layer.
These units are operative at full load in heat pump mode down to -15°C of outdoor air temperature, and up to 46°C in chiller mode without needing additional options. At -15°C of outdoor air temperature, these heat pumps are able to produce hot water up to 42°C at full load.
The use of the electronic expansion valve generates considerable benefits, especially in cases of variable demand and different external conditions. It has been introduced into these units as a result of accurate design choices concerning the cooling circuit and the optimisation of operation in various different working conditions. The electronic expansion valve comes standard in the high-efficieny CA version, optional for the compact K versions.
The full range is also available with the Class A efficiency rating (in heating). CA version guarantees within all the noise configurations premium levels of efficiency thanks to the generous sizing of the refrigerant-exchange surface areas and to an accurate control of the fans.
The shell and tube exchanger allows to achieve the highest flexibility on the unit’s installation, keeping on the hydronic side the pressure drops at the minimum level, thus representing the best choice for all the hydronic applications on the residential, commercial and industrial markets.
The optional built-in hydronic module already contains the main water circuit components; it is available with single or twin in-line, for achieving both low or high head.
Two different sound emission levels available. This means the best unit can be identified based on requirements, according to the system where it will be installed and the application.
